Docker Infrastructure Project

Project Overview

This project demonstrates a containerized infrastructure environment designed to host public web services while keeping administrative and monitoring tools restricted behind VPN/IP-based access controls.

Architecture Diagram

Internet
   |
DNS (Bind 9)
   |
Nginx Reverse Proxy
   |
+-------------------------+
| Public Services         |
| - Apache Resume Site    |
| - Flask Tracker App     |
+-------------------------+
   |
Docker Network
   |
MariaDB

WireGuard VPN
   |
Admin Access
   |
+-------------------------+
| Restricted Services     |
| - Grafana               |
| - Prometheus            |
| - Admin Pages           |
+-------------------------+

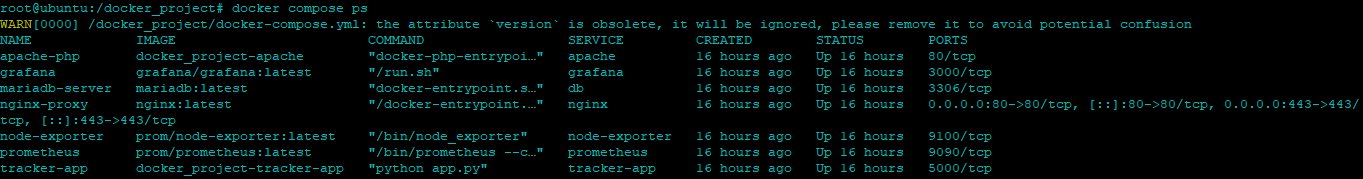

Docker & Docker Compose Infrastructure

Installed Docker and Docker Compose on an Ubuntu VPS and created a centralized infrastructure repository to manage application containers, configuration files, SSL certificates, and persistent storage.

• Installed Docker Engine and Docker Compose

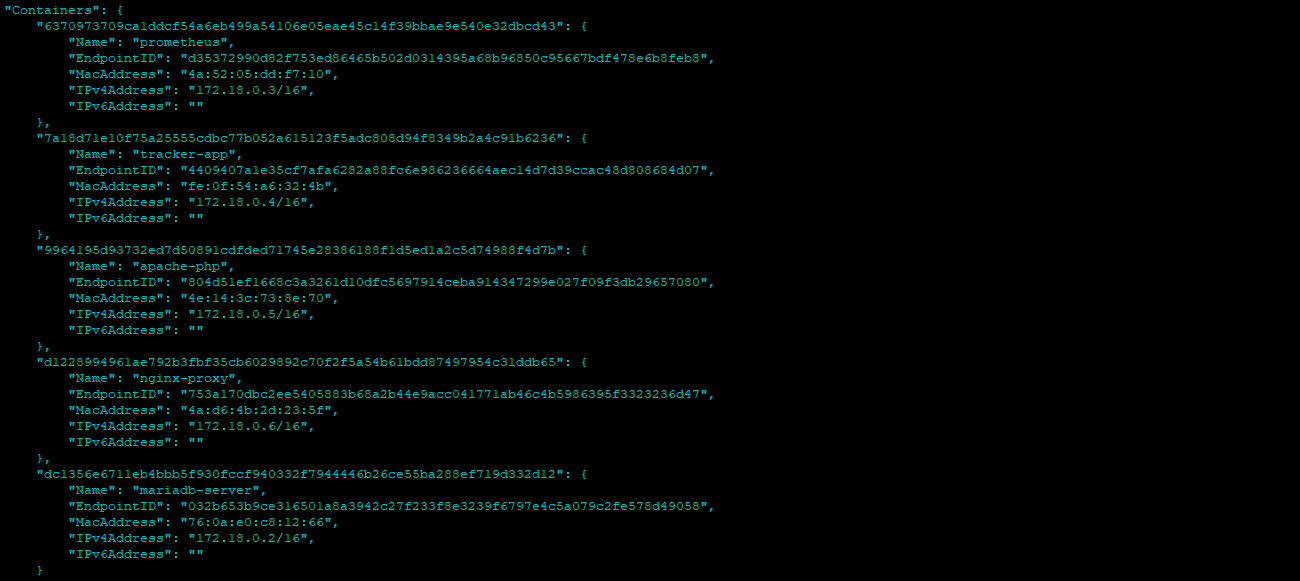

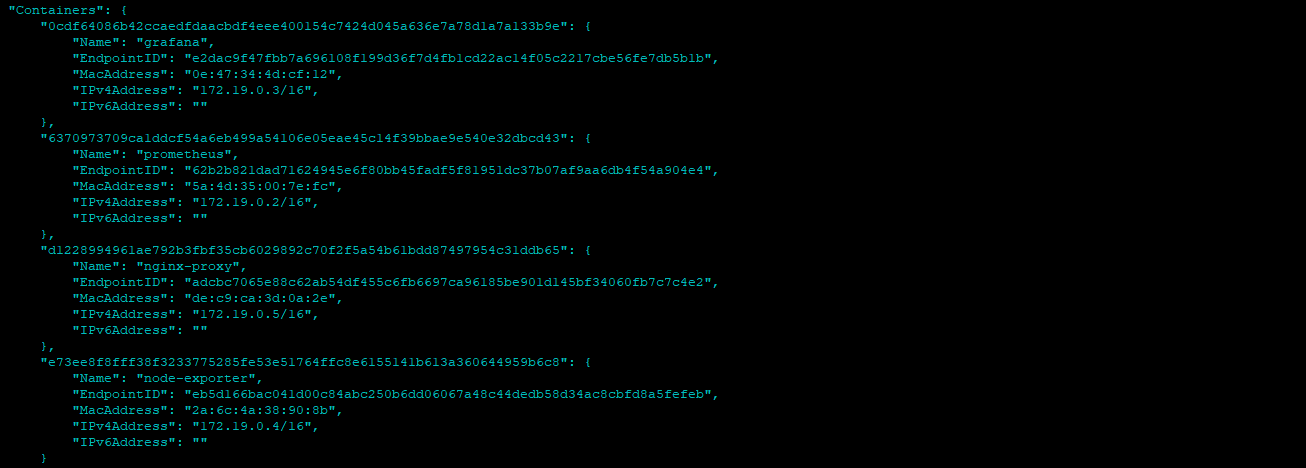

• Created custom Docker network for service communication
• Configured Docker volumes for persistent storage
• Implemented restart policies for service resiliency
• Managed services using a centralized docker-compose.yml

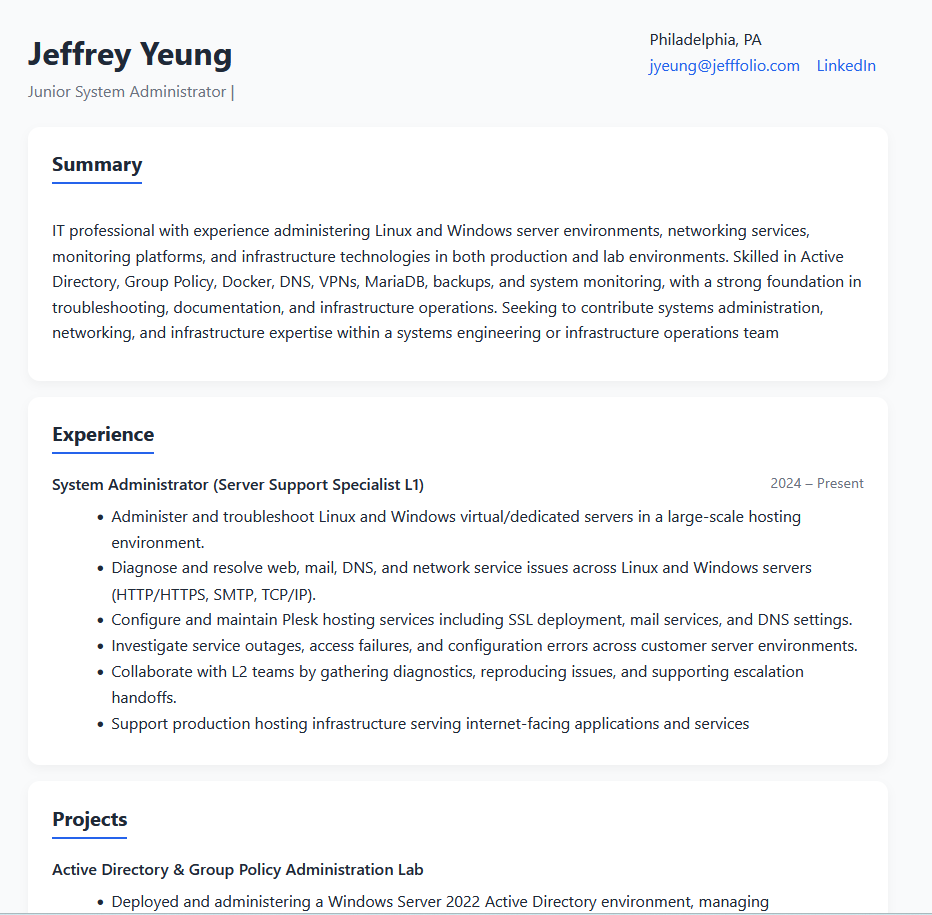

Apache Resume Website & MariaDB

Deployed a PHP-based resume website within a Docker container and connected it to a MariaDB database using Docker internal networking.

• Configured Apache virtual hosts
• Connected PHP application to MariaDB
• Implemented database queries for dynamic content
• Configured persistent database storage
• Restricted database access to the Docker network

https://resume.jefffolio.com

Resume Website

Visit Site

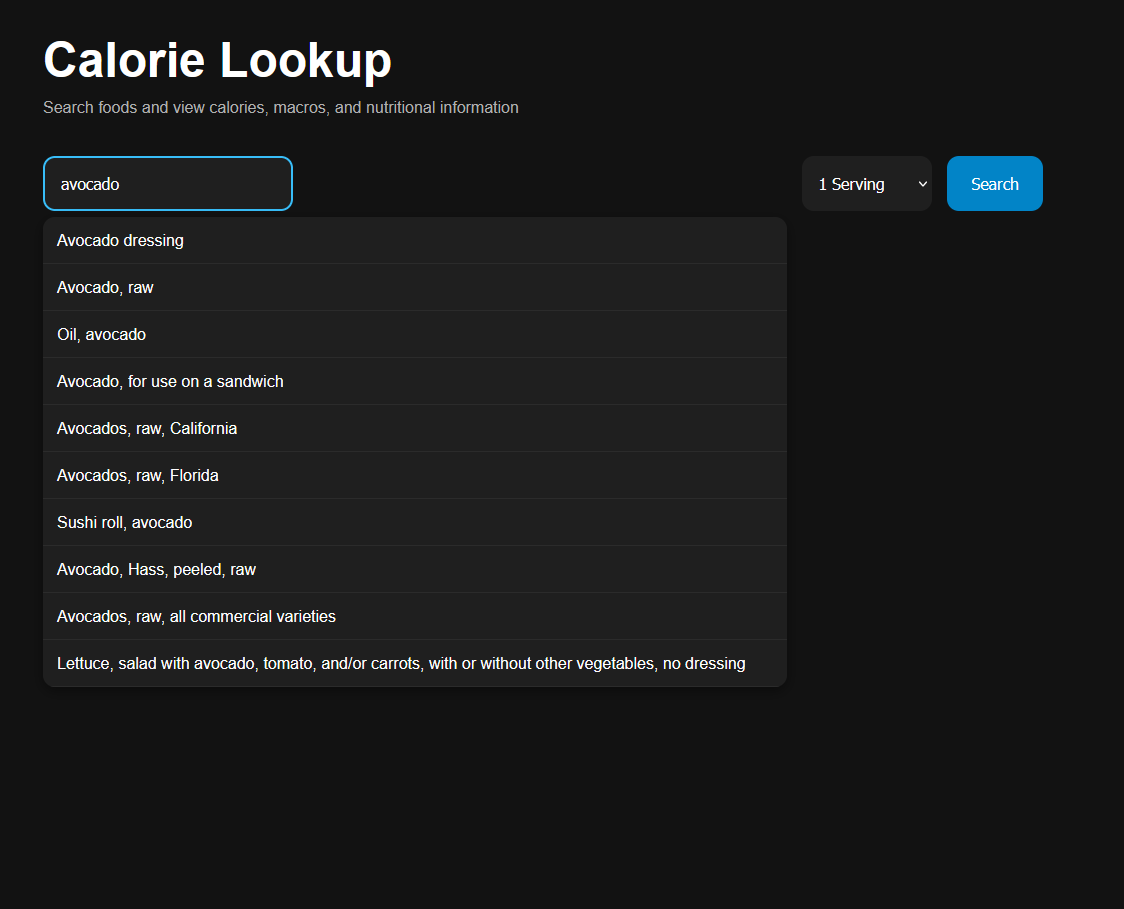

Flask Calorie Lookup Application

Developed and deployed a Python Flask application that retrieves nutritional information through API integrations and serves data through a web interface.

• Built custom Flask container
• Configured internal Docker networking
• Integrated third-party nutrition APIs
• Implemented search and autocomplete functionality
• Published application through Nginx reverse proxy

Calorie Tracker

https://tracker.jefffolio.com

Visit Site

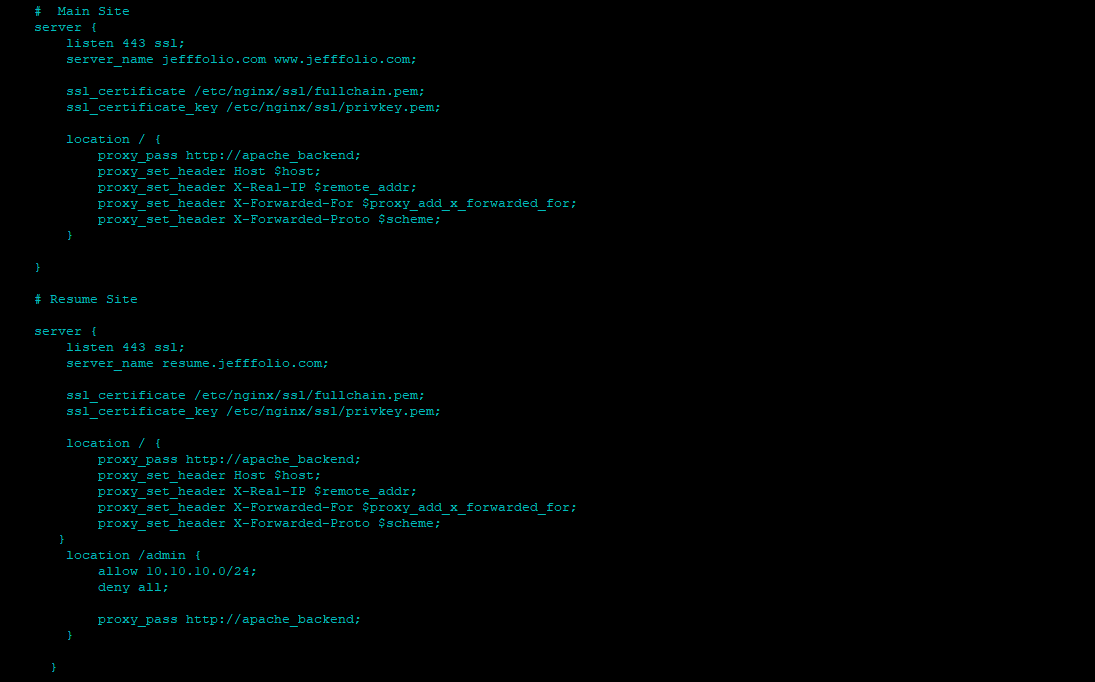

Nginx Reverse Proxy & SSL

Configured Nginx as the public-facing reverse proxy responsible for HTTPS termination and routing requests to internal Docker services.

• Configured virtual hosts for multiple subdomains
• Implemented SSL/TLS encryption

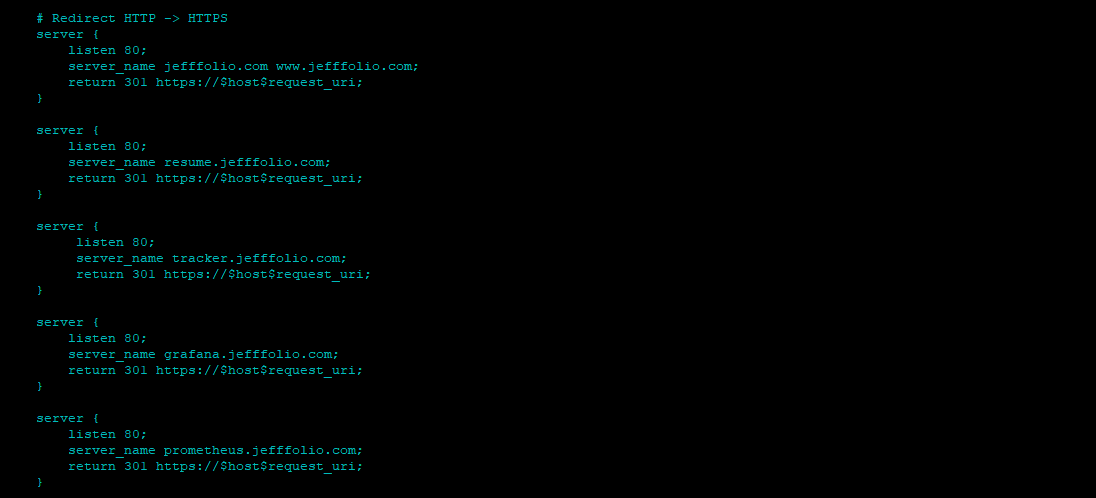

• Configured HTTP to HTTPS redirects
• Created upstream definitions for Docker services
• Managed public access to internal applications

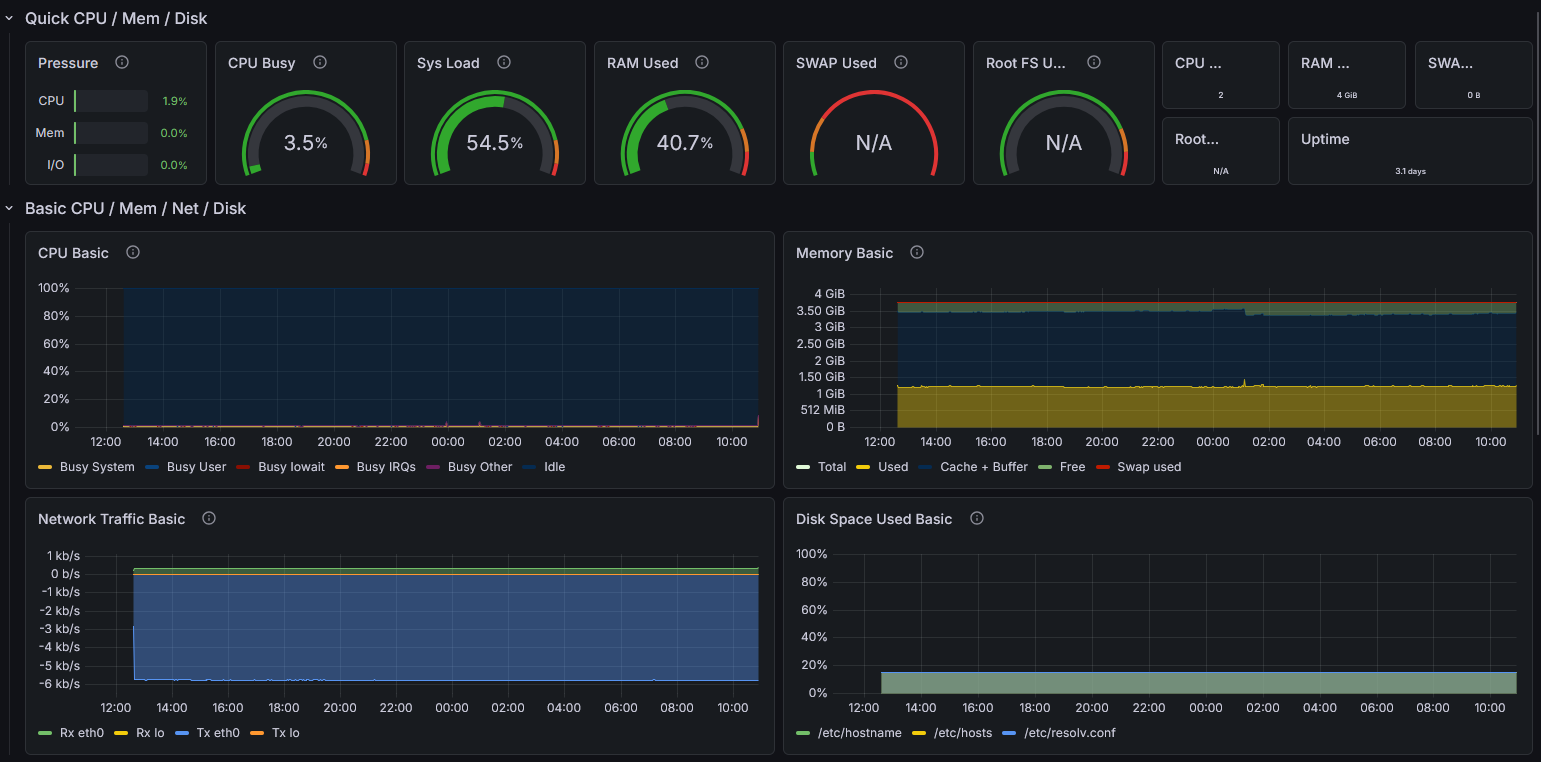

Monitoring & Administration Stack

Implemented monitoring, administration, and backup services to provide visibility into system performance and improve operational reliability.

• Deployed Grafana for dashboard visualization
• Configured Prometheus metric collection
• Installed Node Exporter for system metrics
• Developed an administrative portal for managing website content and database records
• Restricted monitoring services and adminsitrative services through IP allowlists
• Implemented Acronis backup procedures and recovery procedures

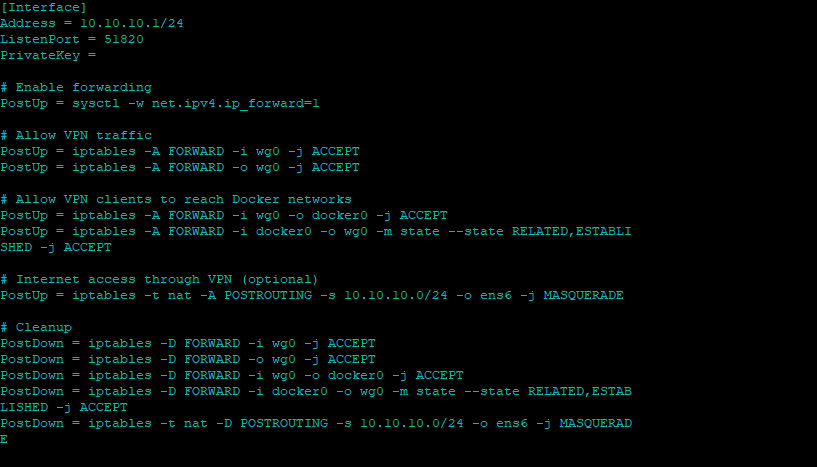

• Configured WireGuard VPN for secure administrative access

https://grafana.jefffolio.com

https://resume.jefffolio.com/admin/login.php

Technologies Used

• Ubuntu Server
• Docker
• Docker Compose
• Nginx Reverse Proxy
• Apache
• MariaDB
• Grafana
• Prometheus
• WireGuard VPN

Security Design

• Public traffic is routed through Nginx reverse proxy.
• Grafana and Prometheus are restricted from public access.
• Administrative access is handled through WireGuard VPN.
• MariaDB is only reachable through the internal Docker network.
• HTTPS is used for public-facing services.
